SATA III solution for industrial field
High Sequential/IOPS performance
Intelligent error recovery system
iSMART for disk health monitoring
iData Guard for abnormal power failure
Wide Temperature: -40℃~85 ℃
Supports TRIM/NCQ/SMART
DEVSLP supported

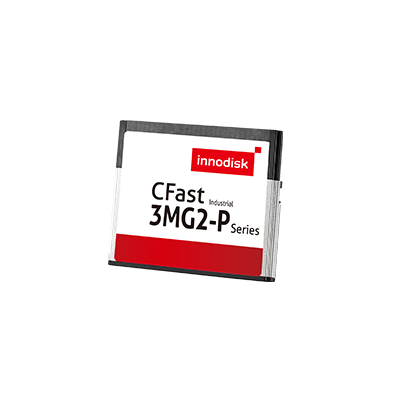

| Module Name | CFast 3MG2-P |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | MLC |
| Capacity | 32GB~256GB |
| Sequential R/W (MB/sec, max.) | 560/350 |
| Max. Power Consumption | 2.5W(3.3V x 760 mA) |
| Max. Channels | 4 |
| H/W Write Protect | Optional |
| Thermal Sensor | ST- Optional / WT- Default |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 42.8 x 36.4 x 3.6 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
| Operation Temp. | 32GB | 64GB | 128GB | 256GB |
|
Standard Grade (0°C ~ +70°C)
|
DGCFA-32GD81BCADC(W) | DGCFA-64GD81BCAQC(W) | DGCFA-A28D81BCAQC(W) | DGCFA-B56D81BCAQC(W) |
|
Industrial Grade (-40°C ~ +85°C) |
DGCFA-32GD81BWADC(W) | DGCFA-64GD81BWAQC(W) |
DGCFA-A28D81BWAQC(W) DGCFA-B56D81BWAQC |
DGCFA-B56D81BWAQC(W) |
