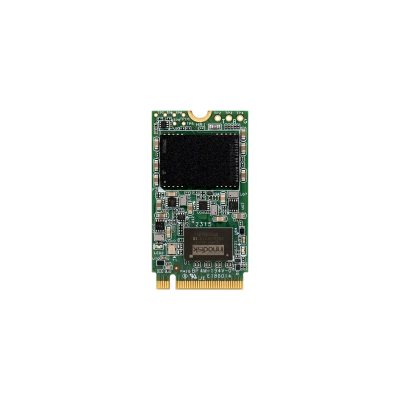

innoDisk/宜鼎M.2固態硬盤M.2 (P80) 4TE2

產品特色

PCIe Gen 4 x4, NVMe 1.4

Excellent data transfer speed

Heat-spreading design

Support iPower Guard & iData Guard

Thermal Throttling Management

iCell technology for power loss protection

256 bit AES hardware based encryption

Support TCG OPAL function (optional)

全國熱線

400-888-2720

Innodisk M.2 (P80) 4TE2 是一款 NVMe DRAM-less SSD ，采用 PCIe 接口與工業級 3D TLC NAND 。M.2 (P80) 4TE2 支持 PCIe Gen 4 x4 ，符合 NVMe 1.4 標準，提供卓越且持久的頂級效能。

這款模塊還具備精細的錯誤偵測和修正（ECC ）功能，可提供完整的端對端數據路徑保護，確保主機系統與 NAND Flash 之間的數據傳輸安全無虞。

Module Name	M.2 (P80) 4TE2
Interface	PCIe Gen. IV x4
Flash Type	3D TLC
Capacity	128GB~2TB
Sequential R/W (MB/sec, max.)	3,550/3,300
Max. Power Consumption	5.4W
Max. Channels	4
Thermal Sensor	Y
AES Encryption	Y
External DRAM Buffer	N
H/W Write Protect	N
S.M.A.R.T.	Y
TCG Opal	Y (Optional)
iCell	Y (Optional)

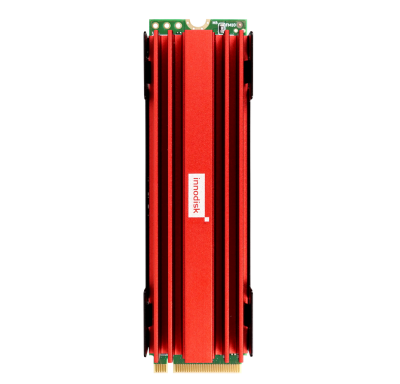

Dimension (WxLxH/mm)	22.0 x 80.0 x 4.25 mm (ST with heat-spreading copper layer) 25.0 x 80.0 x 14.45 mm (WT with heatsink)
Vibration	20G@7~2000Hz
Shock	1500G@0.5ms
MTBF	> 3 million hours
Storage Temperature	-40°C ~ +85°C
Operation Temperature	Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C
